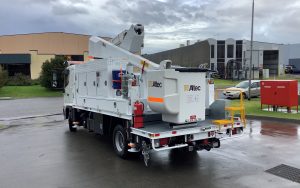

AT37G

The AT37G is built with the operator in mind. It has features and benefits designed to increase productivity and reduce the overall cost of building and maintaining overhead electricity and telecoms lines.

Request a Quote





General Specifications:
Ground to Bottom of Platform: 11.8 m
Stowed Travel Height 3.0 m
Maximum Reach 8.8 m
Boom Articulation:
(Lower Boom)
-25° to +75°
Upper Boom -7° to +90°
Download Spec Sheet
Standard Features:
Features:
  • Altec ISO-Grip® System
  • Telescopic/Articulated EWP
  • Compensating Articulating Arm
  • Hydraulic Boom Extension
  • Insulation per AS1418.10 – 2011, 66kv/33kv dry & 33kv/33kv wet
  • Platform, 610mm x 762mm x 1,067mm nominal
  • Hydraulic Platform Levelling
  • Platform Capacity – 159kg w/rotator
  • Fully metered Single Handle Upper Control
  • Platform Access from the Ground
  • Tool Circuit at Platform
  • Designed in ISO 9001 certified facility
  • Outrigger Motion Alarm (with outrigger option)
  • Powder-coated Steel Structures
  • Lifetime Structural Warranty
  • Custom Layout, Lockers and Accessories as Required
Optional Features:
Options:
  • Chassis Spring Interlocks for use without Outriggers
  • Comprehensive Range of Tools and Equipment from Altec
